212cc 6 strawberries ST PIERRE DU CHAMP

Product information

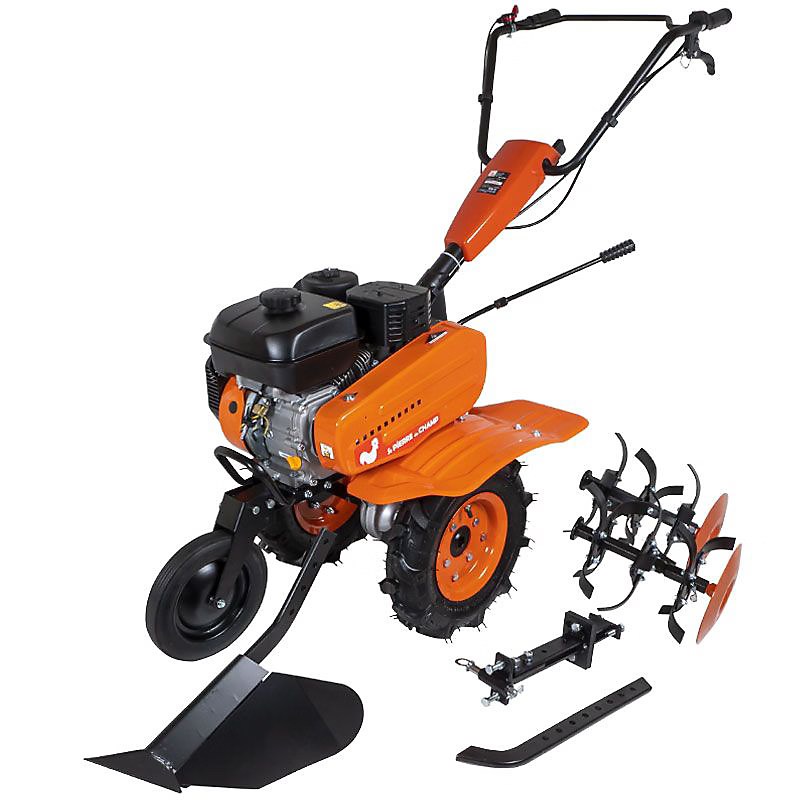

Equipped with a powerful 212cm3 OHV petrol engine developing 4.4kW, this motoculturer features a 2-step forward transmission and 1 reverse. Manoeuvrability and a proven efficiency. Its large agrarian wheels of 415mm coupled with its adjustable striker or any other accessory, will offer you a great versatility and ease of use. Delivered with 6 strawberries, it can quickly and easily transform into a motorbike allowing you an adjustable milling work of 80 to 110cm width for 30cm depth. Engine protected by a device lacks oil and handlebars with handle of presence.
Delivered without engine oil and without transmission oil. Must be filled prior to engine start.
Delivered with:

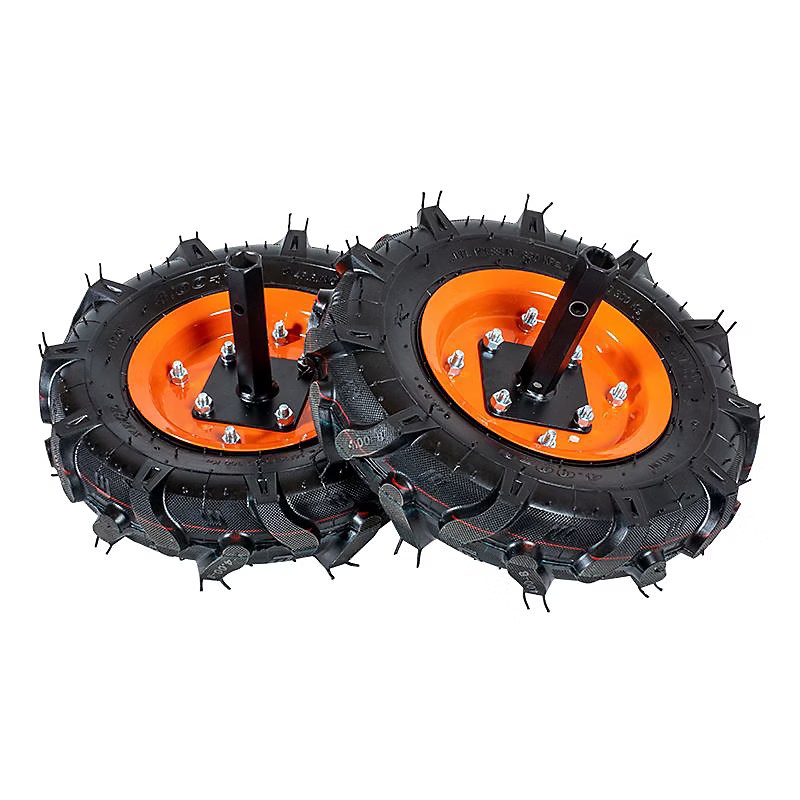

– 2 agrarian wheels Ø415mm X 100mm (Pneus 4.00-8)

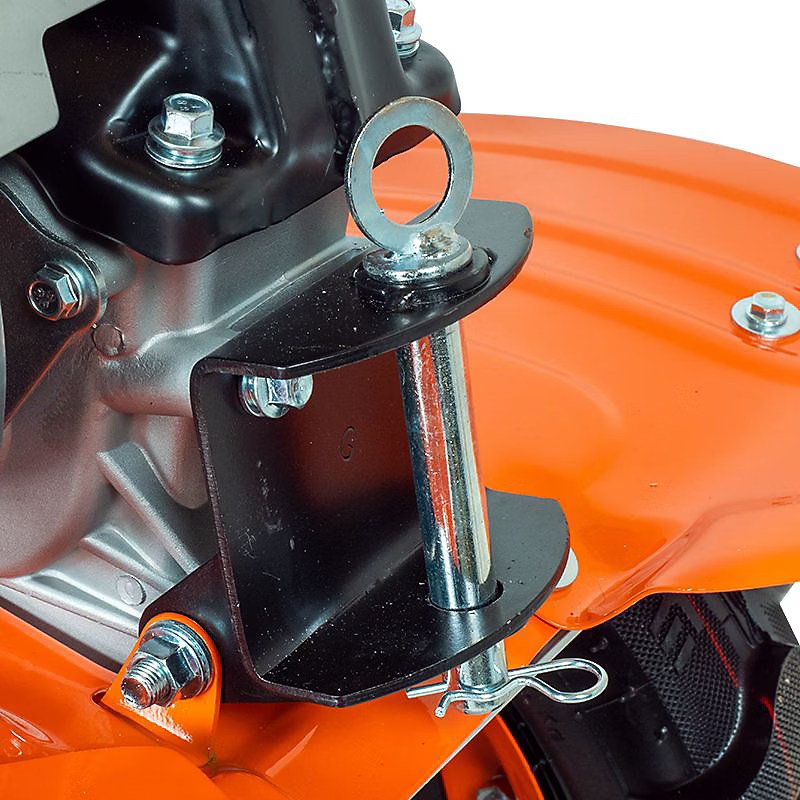

– 1 adjustable striker in width
– 1 accessory holder
– 6 Strawberries 4 blades + side discs
– 1 front wheel for transport
– 1 depth crutch
Recommendations for oils to be provided before the first start:
Engine : SAE 15W40
Transmission box: SAE 80W90 or SAE 15W40

• Tank (L): 3.6 L
• Oil tank: Engine 0.6L, 1.2L transmission housing (oil-free)
• Accessory: plough ref.600613 and potato plough ref.600612
• Engine capacity (cm3): 212cm3
• Working width: from 80 to 110cm
• 66kg
• Work depth: from 15 to 30cm
• Max. power: 4.4 KW to 3600/min
• Safety lacks oil: Yes
• Fuel:
– Pure lead-free petrol SP95 or SP98
– Important: Do not use SP95 E10 and E85 based on Ethanol
• Type of start: Per launcher
• Engine type: 4T OHV with air cooling
• + product:

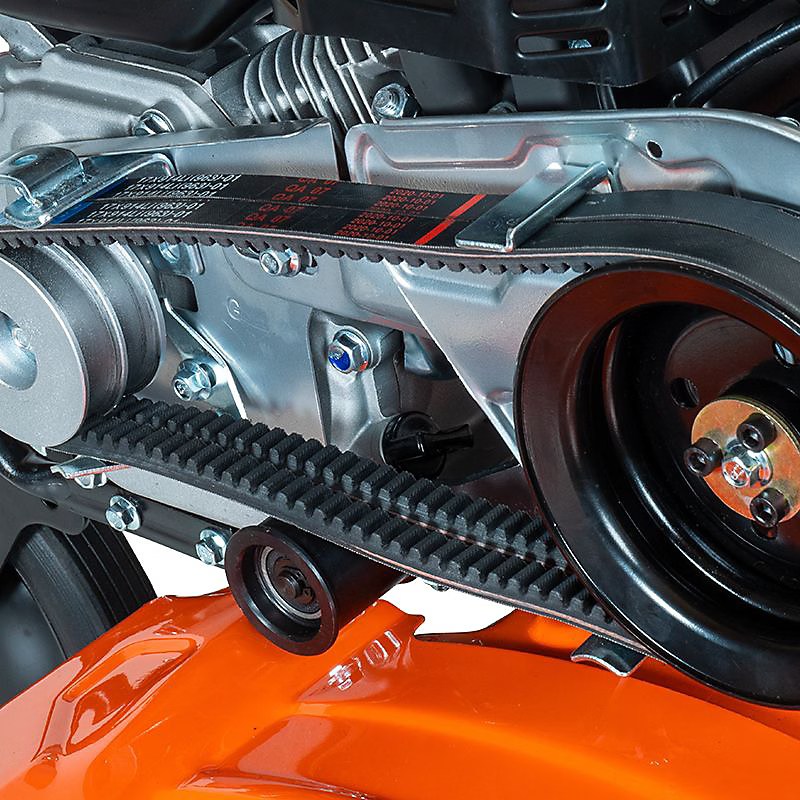

-Transmission by double curved belt and chain
– 3-speed box: 2 front steps, 1 reverse
-Height adjustable guide
-Oil bath air filter -Width inside / outside passage with agrarian wheels 32 / 50cm
• Guarantee: 2 years
